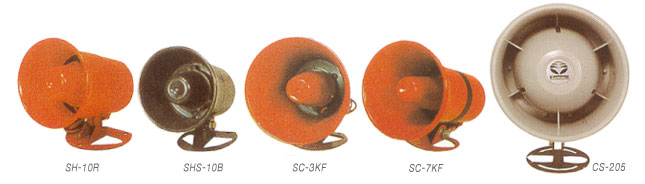

| ◆ 제 품 명 : 혼 스피커 (Miniature Horn Speaker) |
|
▶ 제품규격(Specification) |
모델명 | SH-10R/B | SHS-10B | SC-3KF | SC-7KF | CS-205 |
Power Rating,Watts | 3W | 10W | 5W | 10W | 5W |
Frequency Range,Hz | 800-6,000 | 800-6,000 | 600-7,000 | 600-7,000 | 200-15,000 |
Impedance,Ohms | 8 | 3.2 | 8 | 8 | 8 |
Sound Pressure Level 1000Hz Rated Power/m,dB | 100 | 110 | 109 | 110 | 102 |
1Watts/m,dB | 110 | - | 102 | - | 95 |
Dispersion,1000Hz ° | conical 100 | conical 100 | conical 140 | conical 140 | conical 120 |
Material | Red Plastic | Black Plastic | Red Aluminum | Red Aluminum | Grey Plastic |
Input Power Supply | - | DC6-12V | - | DC6-12V | - |
외형SIZE(mm) | Ø101x104 | Ø101x104 | Ø129x122 | Ø129x125 | Ø220x141 |
제품무게,Kg | 0.38 | 0.41 | 0.5 | 0.6 | 1.23 |
가격(VAT별도) |
|
|
|
|
|
